| Cerajet has been utilized in the 500/700/N700 series (Nozomi) on the Tokaido/Sanyo Shinkansen, |
| in the JR Kyushu Shinkansen, and in the Taiwan Shinkansen. |
|
|

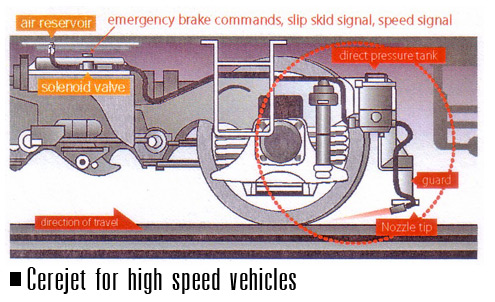

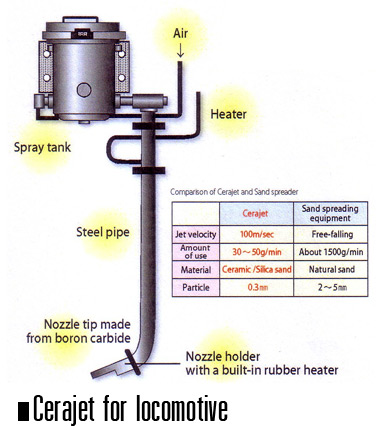

| Cerajet consists of the injection tank in which the mixture of adhesion improving material and |
| compressed air is produced, the injection tube and nozzle. |
| It is the device that can improve the adhesion states by injecting a small quantity of the ceramic |
| particles accurately and efficiency at high speed between the wheel and rail. |
|
|
| This is the most reliable way to supply adhesion improving material which are harder than the |
| steel of the wheel and rail to the point of contact between them. |
|
|
|
| 1. Slip prevention |
| Prevents wheel slippage due to rain, snow, leaves and insects, all of which are typical |
| in slopped terrains. |
| 2. Slip prevention |
| Prevents slinding and shortens the braking distance for vehicles which do not have |
| a slide-detecting device installed. |
| 3. Tread wear prevention |
| Prevents the wheel tread from wearing down flat as a result of skidding. Skidding occurs |
| when the wheel continues to move forward even though rotation is stopped by braking. |
| 4. Consistent braking distance |
| Safety during emergencies is further improved by achieving the same braking distance |
| regardless of weather conditions. |
|
|
|
| Cerajet has been utilized in the 500/700/N700 series (Nozomi) on the Tokaido/Sanyo Shinkansen, |
| in the JR Kyushu Shinkansen, in the Taiwan Shinkansen, in the JR native line, in private railways, |
| and in locomotives of freight trains. |
| With Cerajet installed, the STAR21 recorded a maximum speed of 425 km/h |
| during high-speed trial operation at 0:01 on December 21, 1994. |
| STAR21 = Superior Train for Advanced Railway toward the 21st century |
|
|
| Users can enjoy increased convenience and rest assured. |
|
| |
|
|
